系统组件
三相电动制动电机
Power Jacks 可为所有应用提供交流或直流电动机。
最常用的电机是三相交流感应电机，但我们也供应单相交流感应电机、伺服电机和直流永磁电机。
这些电机上的制动器主要设计用于保持制动。它们是弹簧加载的电释放装置（通电释放），具有故障安全运行特性，因此在供电中断或失效时，制动器将接合并制动负载。
Useful Information
3-Phase AC Brake Motor Features
- 3 Phase, 50 Hz/60Hz
- 220-240/380-415V up to 3kW
- 380-415/660-720V 4 kW & above

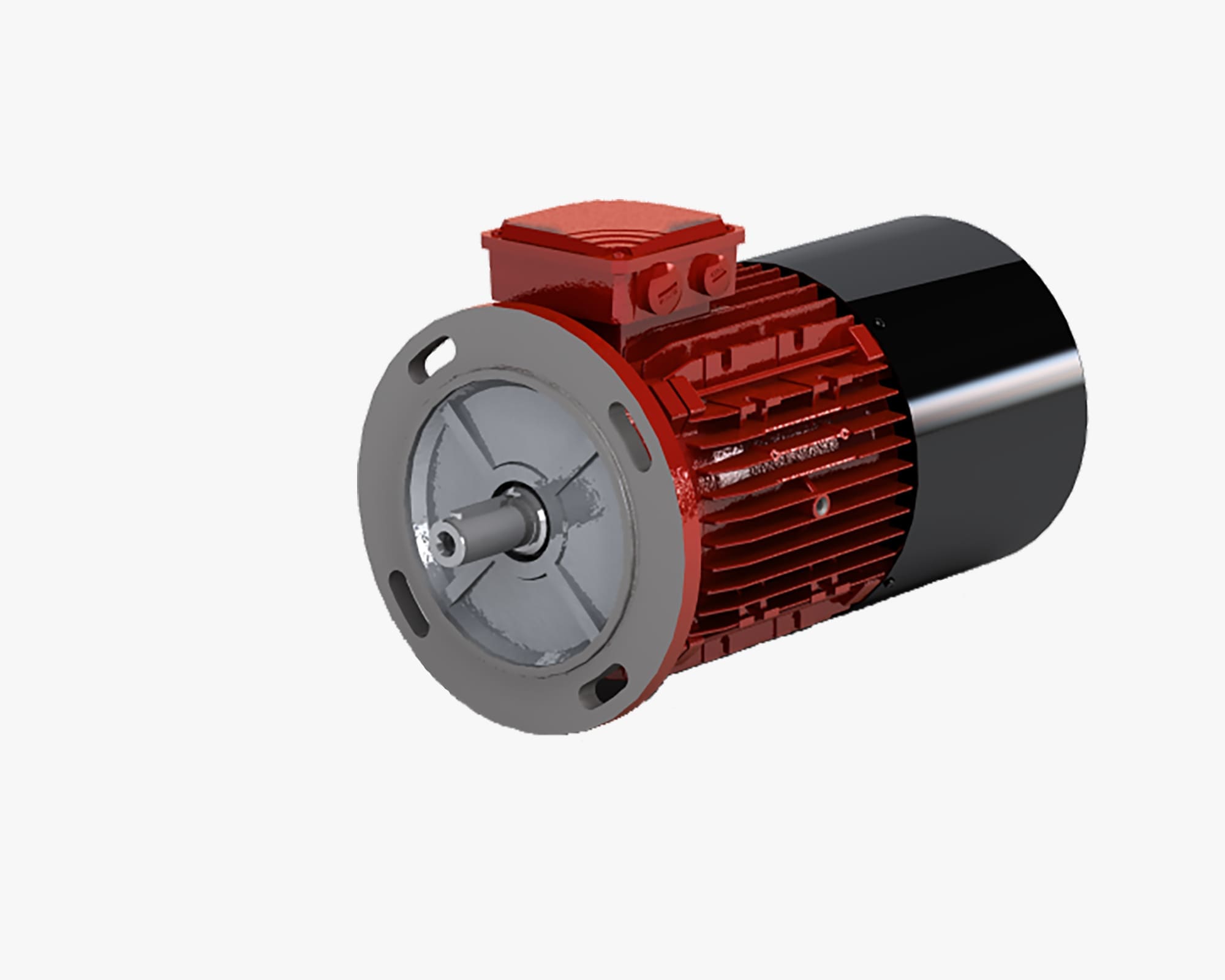

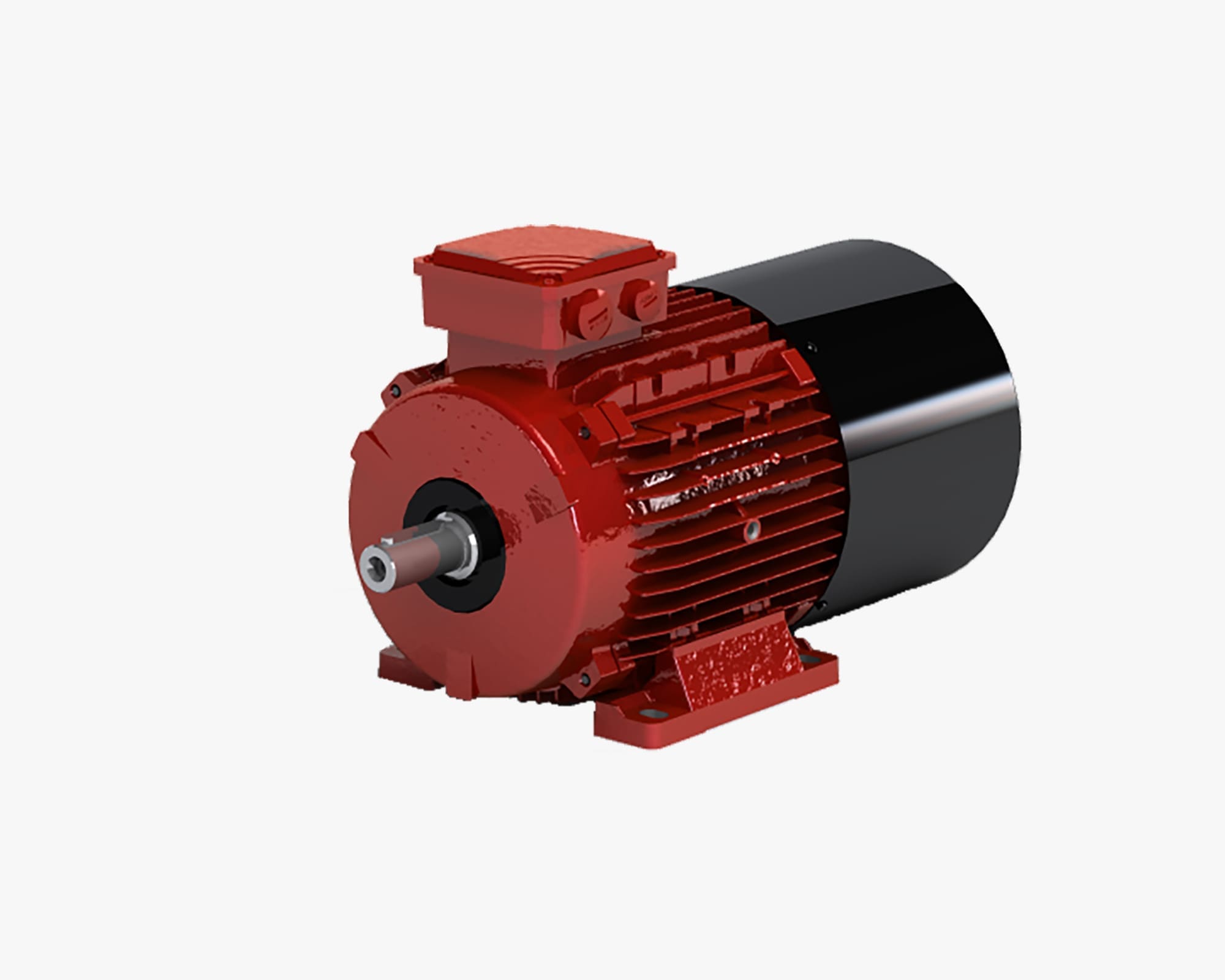

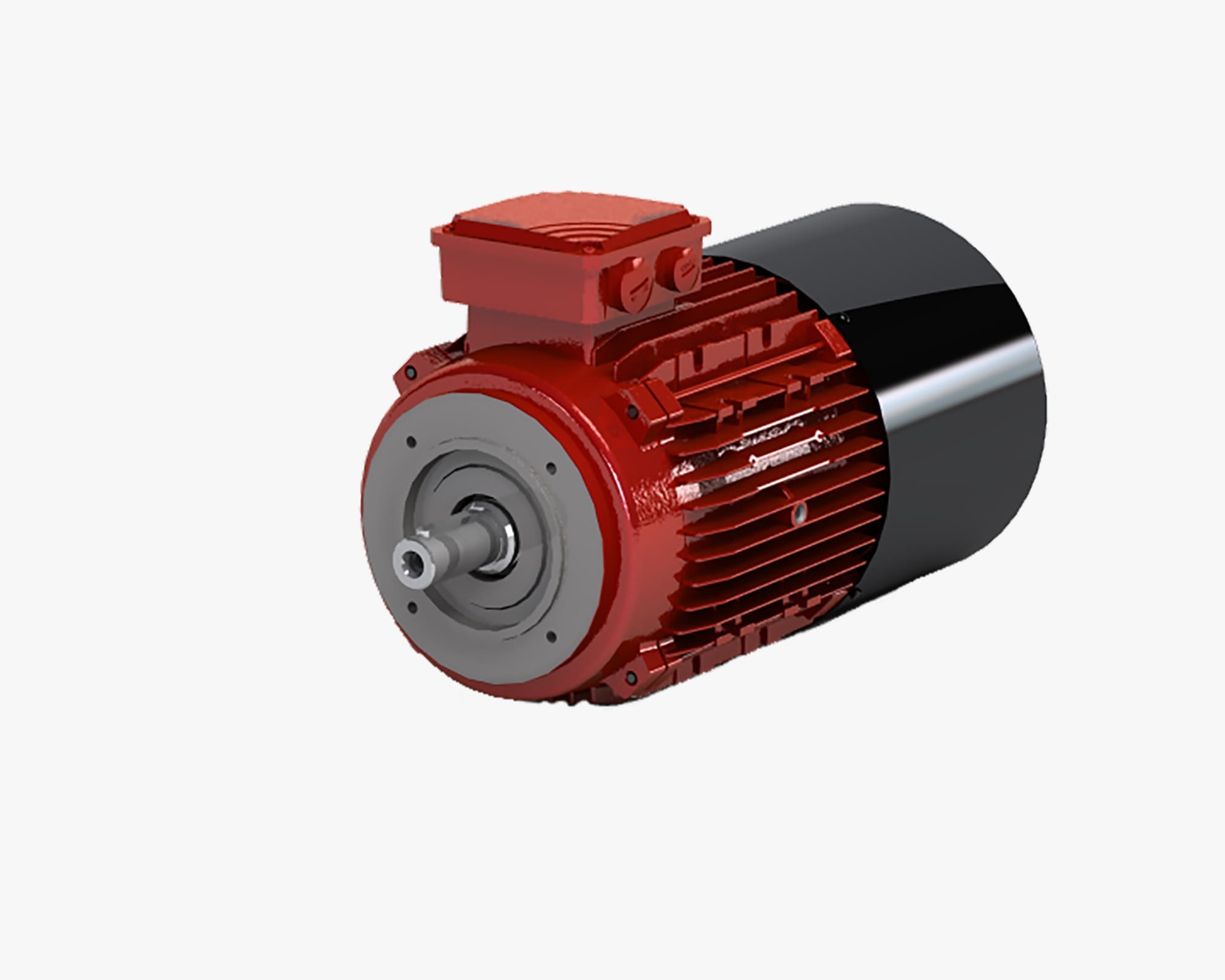

- B3 Foot, B5 Flange and B14 Face Mounting
- 4 Pole (1500 rpm) and 6 Pole (1000rpm)
- IEC Frame Sizes 63 up to 200
- High torque DC brake
- Mechanical Hand Release Option
- Standard rectifier: 230V, 50/60Hz (others on request)
- Aluminium construction
- Fan ventilated (TEFC)
- Enclosure IP54
Benefits
The brake units are a single disc type mounted on the non-drive end-shield of the motor and can be either DC or AC types (DC is the standard type). They are spring applied electrically released units (energise to release), which provide fail to safe operating characteristics such that on interruption, or failure of power supply, the brake will engage and arrest the load.
- High efficiency — low running costs
- Low noise levels
- High power factors
- High torque with smooth acceleration and low current
- Multi-mount versatility for mounting arrangement and terminal box position
- Aluminium construction for light weight and. corrosion resistance
- Four position cable entry
Other Motors and Options
- Dynamic brake
- 2 and 8 Pole 3 phase AC motors
- Single phase AC motors
- Servo motors
- DC permanent magnet motors
- Cast Iron or Steel construction motors
- High altitude and high temperature options
- Integral encoder (Absolute or Incremental)
- Forced ventilation unit (FVU)
- TENV cooling
- Enclosures IP54 up to IP66
- Plug-In Connections (e.g. Harting)
- Tropicalised motors
- NEMA and Japanese standard units
- Integral AC inverter
- Marine motors
- Hazardous area motors
- ATEX rated motors
