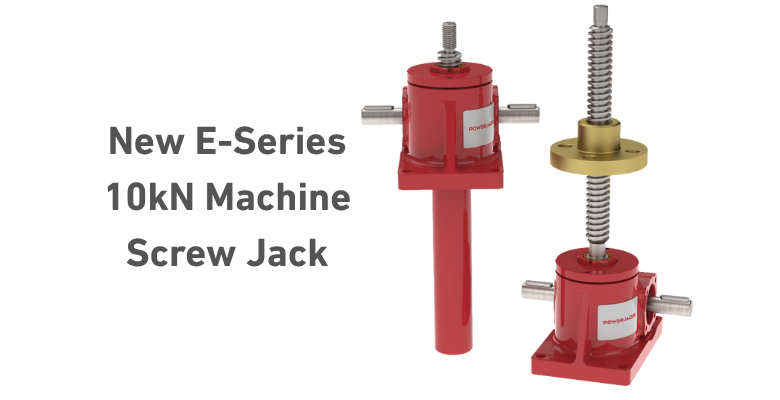

Power Jacks Launches New 10kN Screw Jack Giving Improved Possibilities for Machine Building

Power Jacks Launches New 10kN Screw Jack Giving Improved Possibilities for Machine Building

We’re excited to announce the official launch of our new 10kN E-series Screw Jack designed to give engineers more capabilities and versatility in actuation, lifting and positioning solutions for machine building.

“The E-Series Screw Jack Range is well established, yet through innovative design we are still finding ways to improve the range to benefit our customers” said Alex Crossland, Managing Director. “This new 10kN screw jack is part of our continuously product development plans to deliver new and improved levels of linear motion solutions”.

Key features of the new 10kN Machine Screw Jack include:

- Easily Integrate Motor Drives & Feedback Devices - Better Machine Design: Bolt-on mounting points on each side of the gearbox housing where the worm shaft is located allows for the direct mounting of electric motors, motion feedback devices (e.g. rotary cam limit switches and encoders), brakes and other accessories. This provides an integrated design approach for minimising machine design envelope, number of components and build cost.

- High Strength to Weight Ratio – Reduced Handling Effort and Operation Costs: The weight of the screw jacks gearbox has been minimised by making the housing from a high strength yet light weight aluminium alloy and by using sealed worm shaft bearings to remove the need for a cover flange at each worm shaft end. This low weight reduces handling effort at build, reduces weight & logistics costs for the final machine and mobile applications reduces power (fuel) consumption.

- Integrated Guide Bush for Lifting Screw – Accurate Operation: The gearbox as standard has an integrated self-lubricated guide bush for precision alignment of the lifting screw, which improves the operational accuracy of the final machine.

- Strong 4 Bolt Mounting for Screw Jack Base - Improved Installation: Secure 4-point mounting method for fixing the screw jack base to a superstructure gives improved rigidity, alignment and fixing strength over 2-bolt alternatives.

This new 10kN E-Series Machine screw Jack was developed from customer requirements prioritising versatility in mounting accessories for drive and feedback devices over the need for an Ultra-Compact gearbox as provided by the original 10kN screw jack. The new design still minimises size and weight through an optimised design. Both the original design, designated type-1 and the new screw jack, designated type-2, are available giving engineers the choice to pick the best solution for their application.

The E-Series screw jacks are a popular range for customers with millions in service worldwide in a diverse range of industries including Renewable Energy, Food & Beverage, Aerospace, Metal Processing, Construction, Chemical Processing, Paper, Glass, Defence, Nuclear Power, Oil & Gas, and Communications. The success of these products are their performance and versatility in customised design solutions. The new 10kN screw jack follows that ethos and extends the capabilities of the range to further benefit machinery designers.

At launch the 10kN Screw Jack is available in four standard configurations and six standard variants.

Configurations:

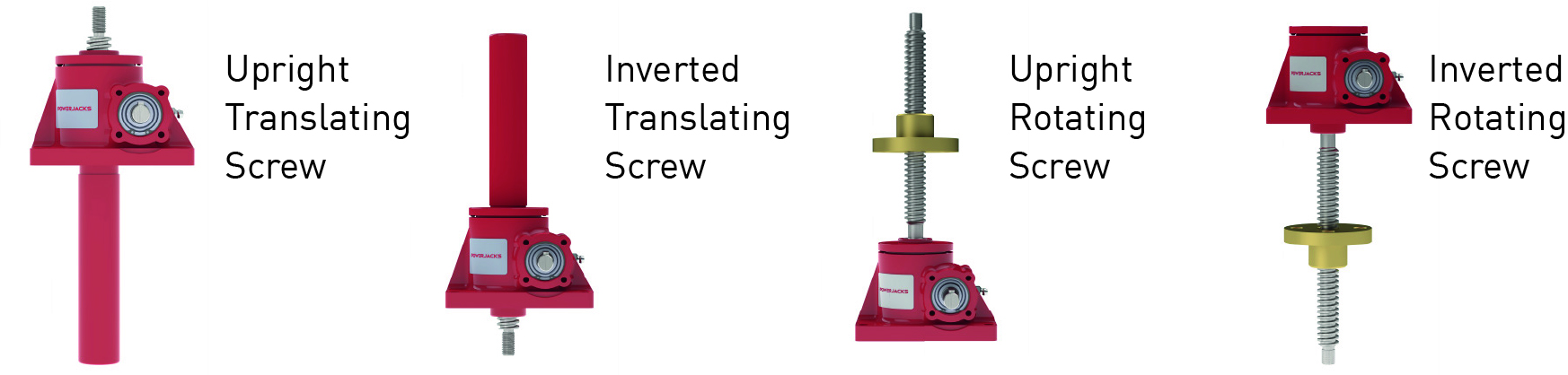

EM 0010 T2 Std Configurations 00

Variants:

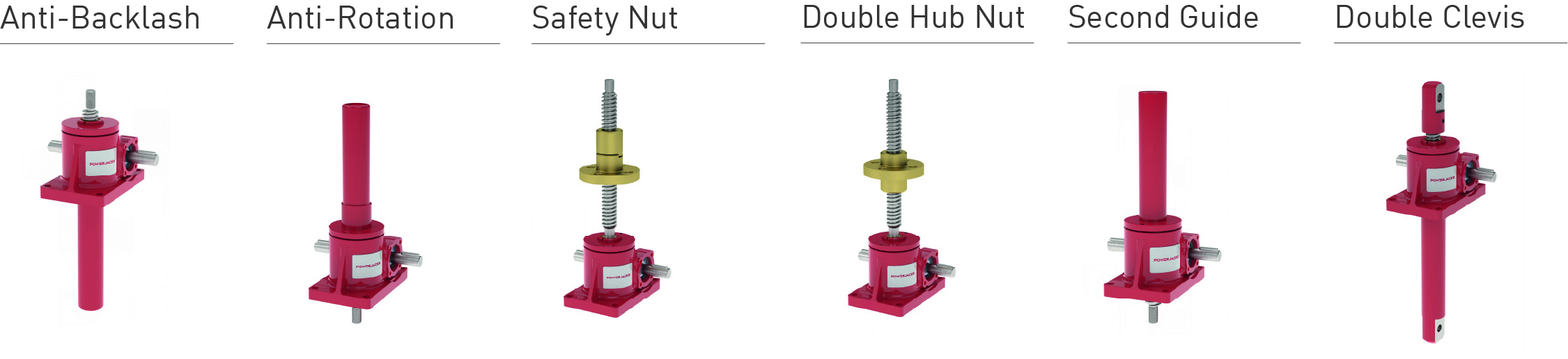

EM 0010 T2 Std Variants 00

The new screw jack also benefits from Power Jacks extensive modular building system for screw jacks allowing extensive customisation. Examples of some assemblies featuring “bolt-on” accessories are shown below.

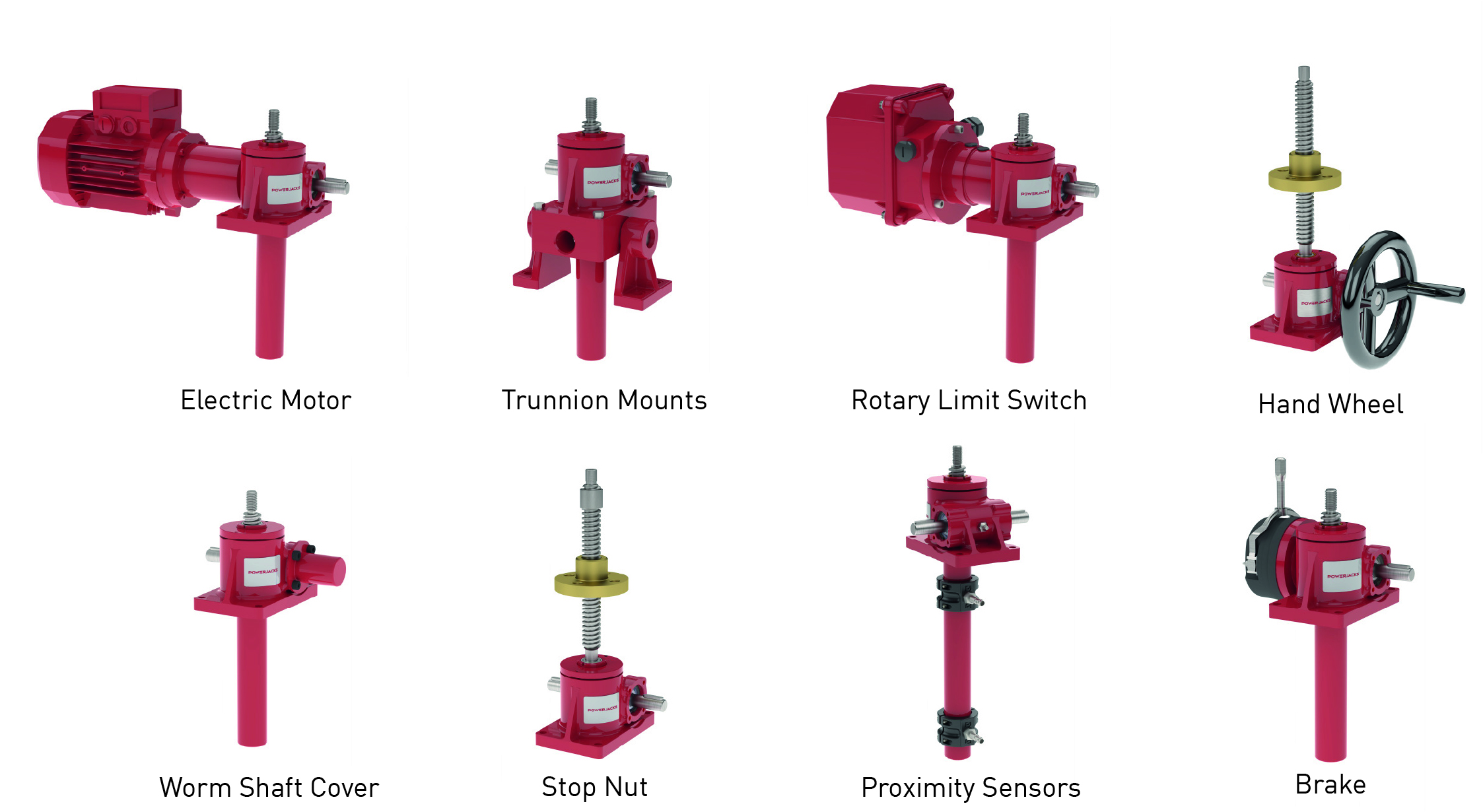

EM 0010 T2 Bolt On Accessories 00

In addition to the standard range customised and bespoke designs of the 10kN E-Series Machine Screw Jack are also available.

The new 10kN E-Series Machine Screw Jack is now available from Power Jacks global sales network. For more product information, download the product flyer: https://www.powerjacks.com/downloads/brochures/#:~:text=10kN%20E%2DSeries%20Machine%20Screw%20Jack(EN)
