Motion Control

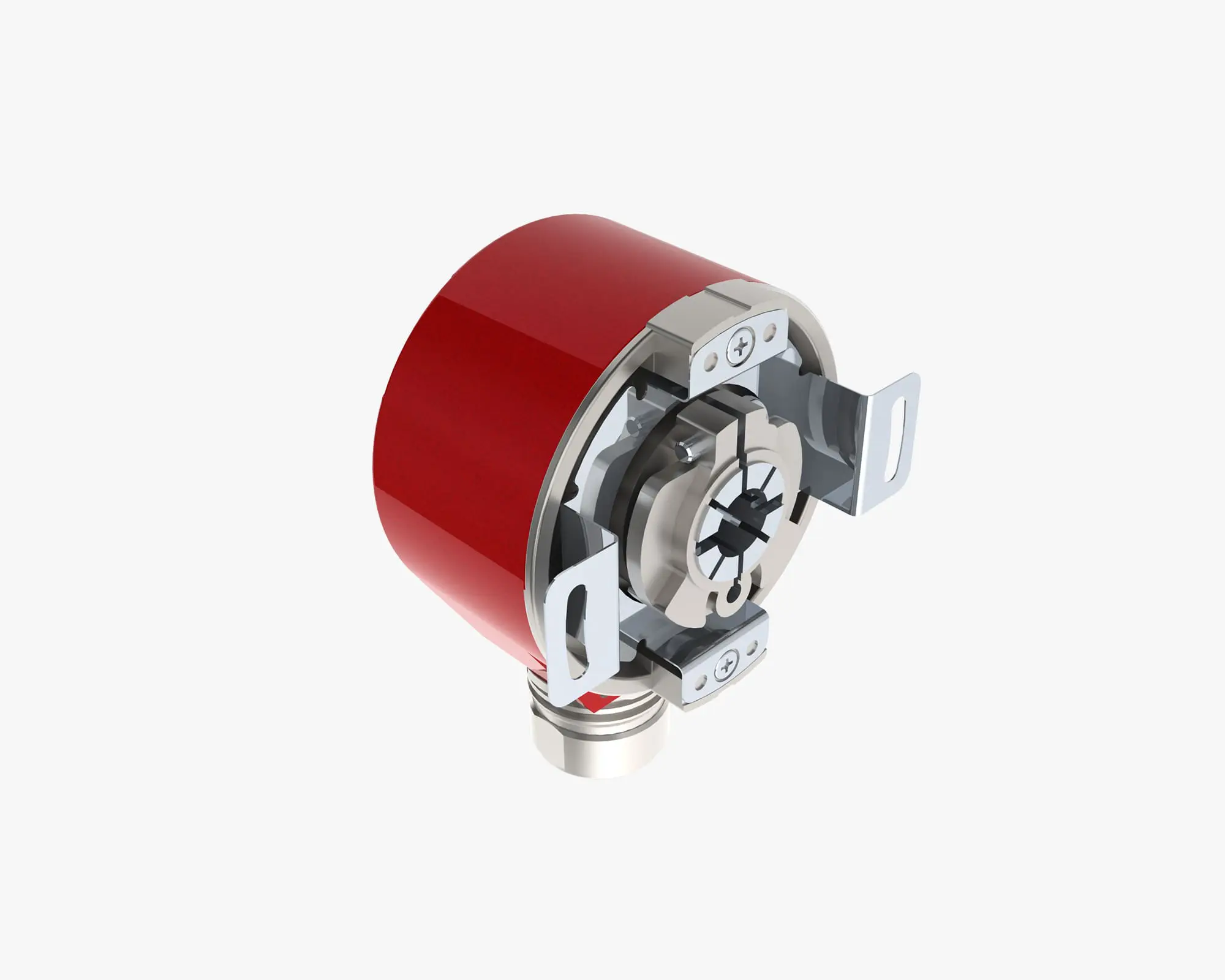

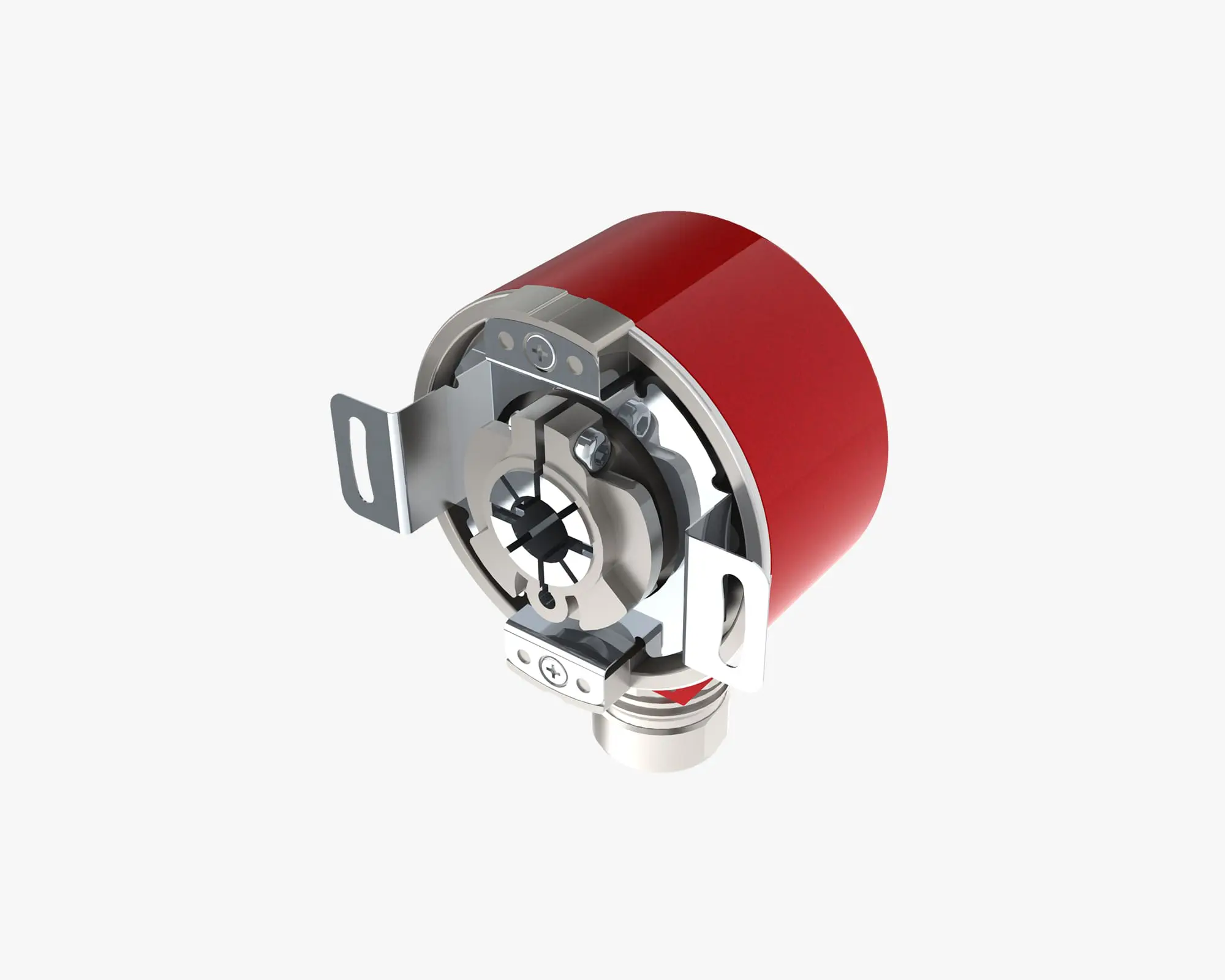

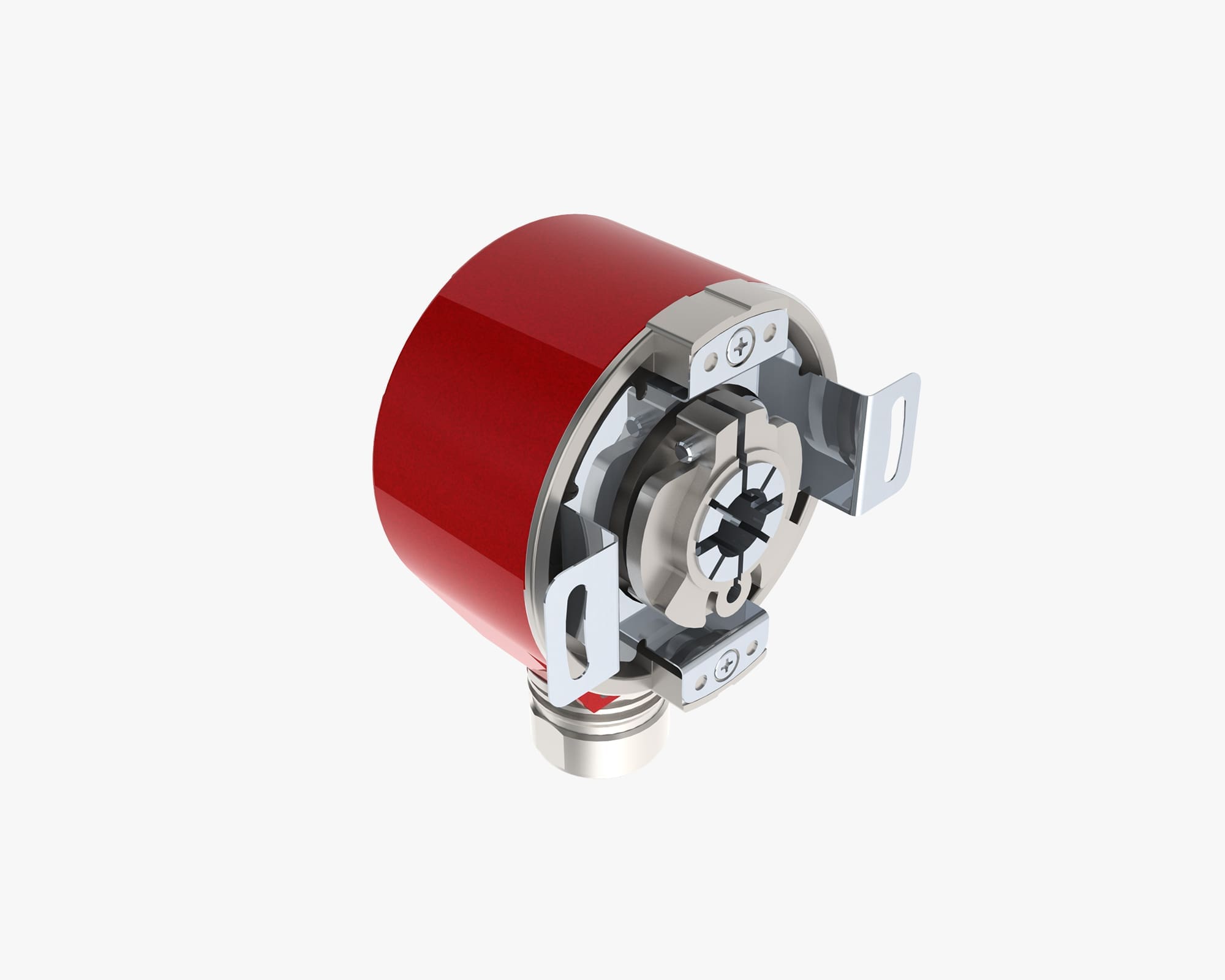

Encoders
Absolute and Incremental Rotary Encoders provide a good solution for speed and position feedback for screw jacks and linear actuators.
A wide range of encoders are available to suit most applications. If the encoders can't be mounted on the drive motor then they can be mounted on a free drive shaft on the Screw Jack or Linear Actuator.
Useful Information
Incremental Encoder Features
- Hollow or Solid shaft designs
- Multi-Turn
- High resolution up to 16-bit
- Signal lines from 1 to 65536
- Programmable output voltage level, zero pulse position, zero pulse width and number of lines
- RS422 or Push-pull output drivers
- 4.5 – 5.5V and 10 – 32V options
- Enclosure Up to IP66 as standard
- M12 and M23 plug-in connector options – radial and axial
- Matched cable & connectors available
- Designs with face mount or servo flange, blind or through hollow shaft.
- Other designs available on request
For more details refer to Screw Jack Design Guide.
Absolute Encoder Features
- Hollow or Solid shaft designs
- Multi-Turn
- High resolution up to 30-bit
- Up to 262144 steps per revolution
- Up to 4096 revolutions
- SSI or Gray code
- Programmable resolution and offset
- 4.5 – 32V operating voltage
- Enclosure Up to IP65 as standard
- M12 and M23 plug-in connector options – radial and axial
- Matched cable & connectors available
- Designs with face mount or servo flange, blind or through hollow shaft.
- Other designs available on request
For more details refer to Screw Jack Design Guide.
