Load Monitoring

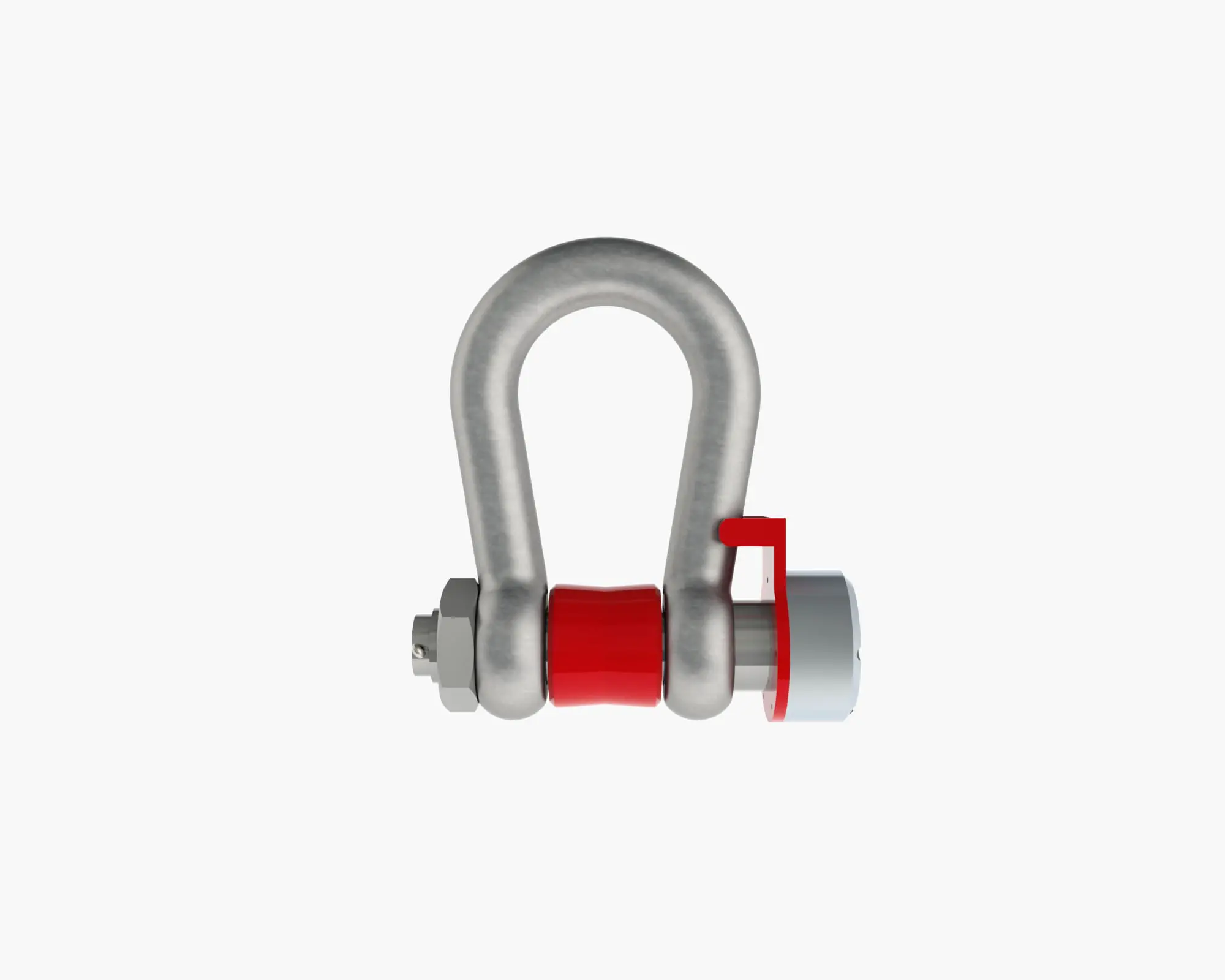

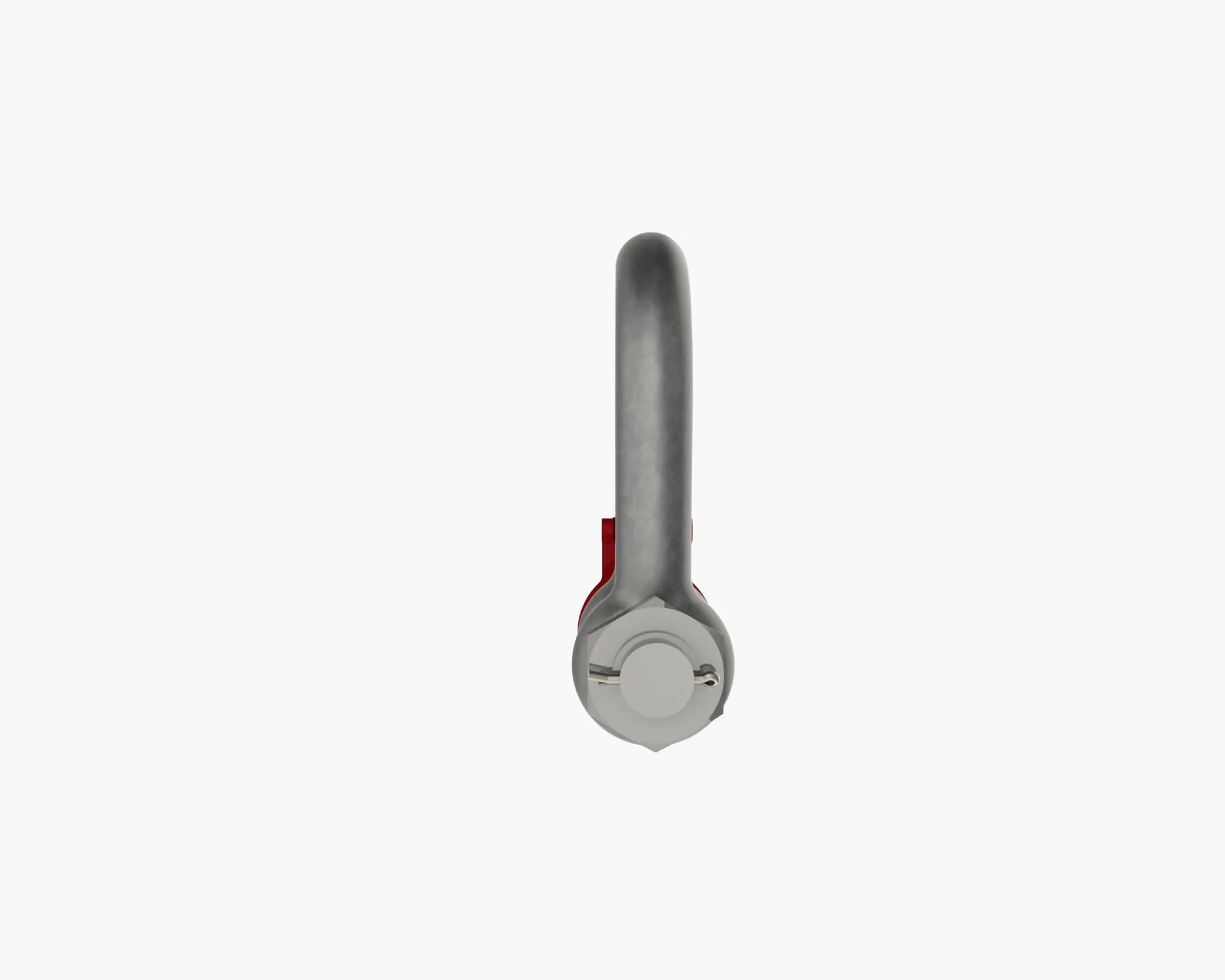

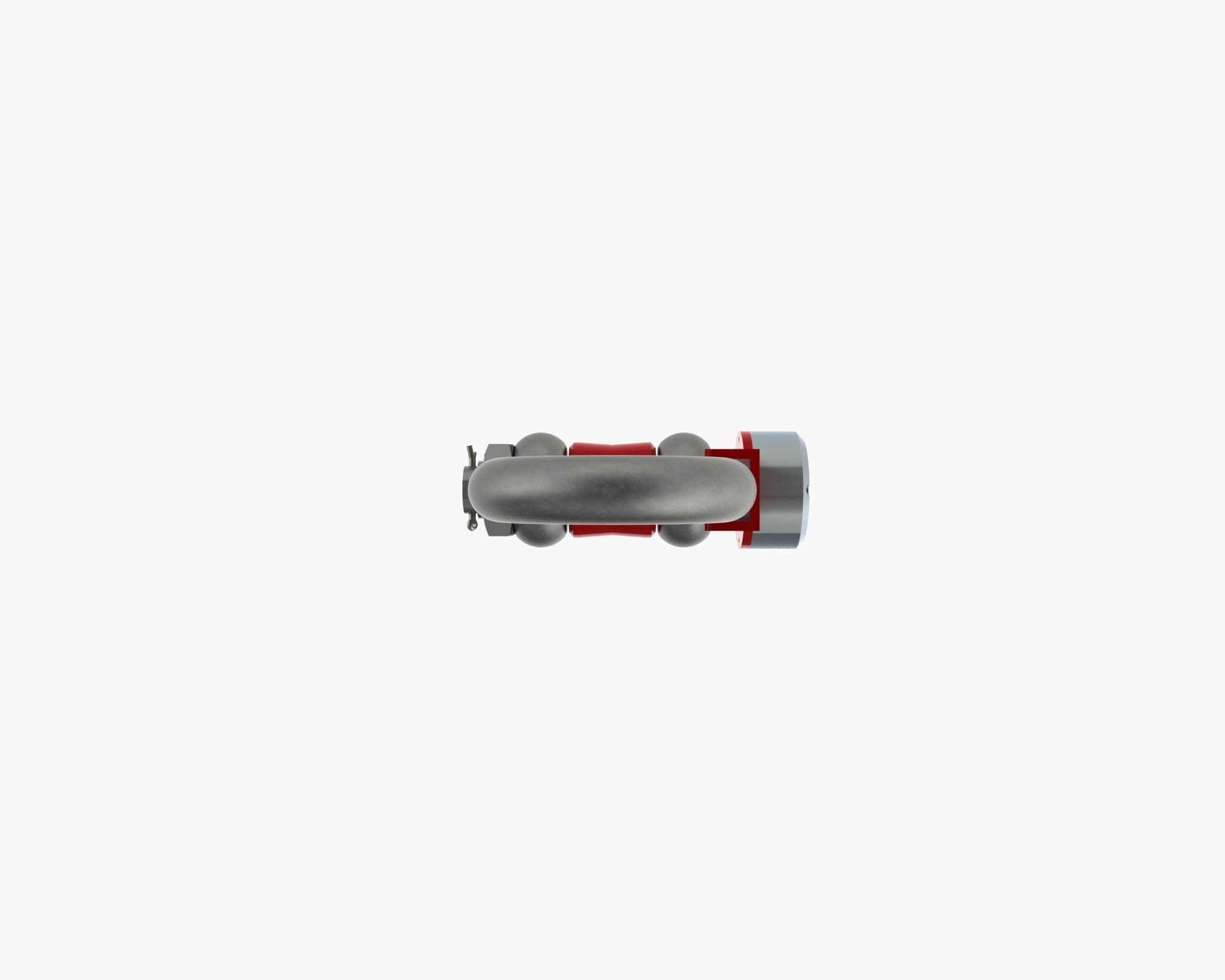

Load Shackles
Range of Load Shackles for monitoring the load on pin to hook, rope or cable connections.
Used for load monitoring shackle connections to clevis pin joints on screw jacks and linear actuators for loads up to 500Te.
Useful Information
Key Features
- For compact, reliable and precise tensile load monitoring for your lifting, pulling or weighing applications.
- Suitable for all industry sectors including Marine, Offshore and Subsea.
- 14 Load Shackle designs from 2Te to 500Te as standard
- Up to 2000Te Load Shackles available on request
- Robust, Compact, High Tensile Steel design using high grade material
- Internal Antenna on all wireless models
- Design uses VanBeest™ Greenpin® shackles as standard. Others on request
- Load pins from high strength stainless steel
- Safety Factor of 5:1
- Wireless and cabled options available
- Cabled versions have a long 15m flying cable as standard
- Matched handheld telemetry display
- Up to 12 shackles can be linked to the handheld display for individual or summed load values
- Data logging software available
- Integral signal conditioning
- ATEX versions available
- Every unit (shackle and load pin) load tested and certified
- Special design available on request
