Range-C
Series 35, 37, 38, 39 and 40
3D Interactive Preview
The Range-C bevel gearbox is a compact cubic unit, available in 5 sizes with 5 gear ratios and mounting points on all 6 sides. Suitable for low to high torque transmission up to 7000Nm as standard.
The compact design is made possible by the central bearing housing for the 1:1 and 1.5:1 gear ratios, for gear ratios 2:1 and above there is a small extended bearing housing on the input side of the bevel gearboxes. The performance of the gearbox delivers a high torque rating unit with good thermal characteristics and is available in solid shaft and hollow output shaft configurations. Mounting points are available on all 6 sides of the gearbox and there is an optional motor mounting flange, for easy direct coupling of a standard electric motor.
Useful Information
Key Features
- Compact Cubic Bevel Gearbox Design
- 2-way, 3-way & 4-way Configurations
- Solid Shaft & Hollow Shaft
- Gear Ratios: 1:1, 1.5:1, 2:1, 3:1 & 4:1
- Torque Ratings up to 7000 Nm
- Mounting Points on All Sides
- Integrated Motor Adapter Design
- Special Custom Design Available
- Special Gear Ratios Available
- Popular models ex-stock
Typical Applications
The Range-C cubic compact bevel gearboxes are designed for the transmission of rotary mechanical power through ninety degrees or split power from one input drive to two or three output drives. They use precision cut spiral bevel gears to deliver a smooth and quiet transmission with an efficiency of up to 98%. While the standard design is suitable for most applications our engineering team can customise units to meet the most arduous of conditions whether inside, outside, on land or subsea.
Selecting the Right Gearbox
When selecting a gearbox there are a number of factors which influence the final size of the selected unit. You can view this information in the Bevel Gearbox Selection Guide. The selection procedure is a 12 step process that uses the following application information to select a bevel gearbox.
- Bevel Gearbox Input Speed (rpm)
- Bevel Gearbox Output Speed (rpm)
- Bevel Gearbox configuration
- Required Output Torque (Nm)
- Operating Hours per day
- Input Power Source Bevel Gearbox application
- Number of starts per hour
- Transmission methods
- Duty cycle per hour (% running time)
- Operating ambient temperature
Configurations

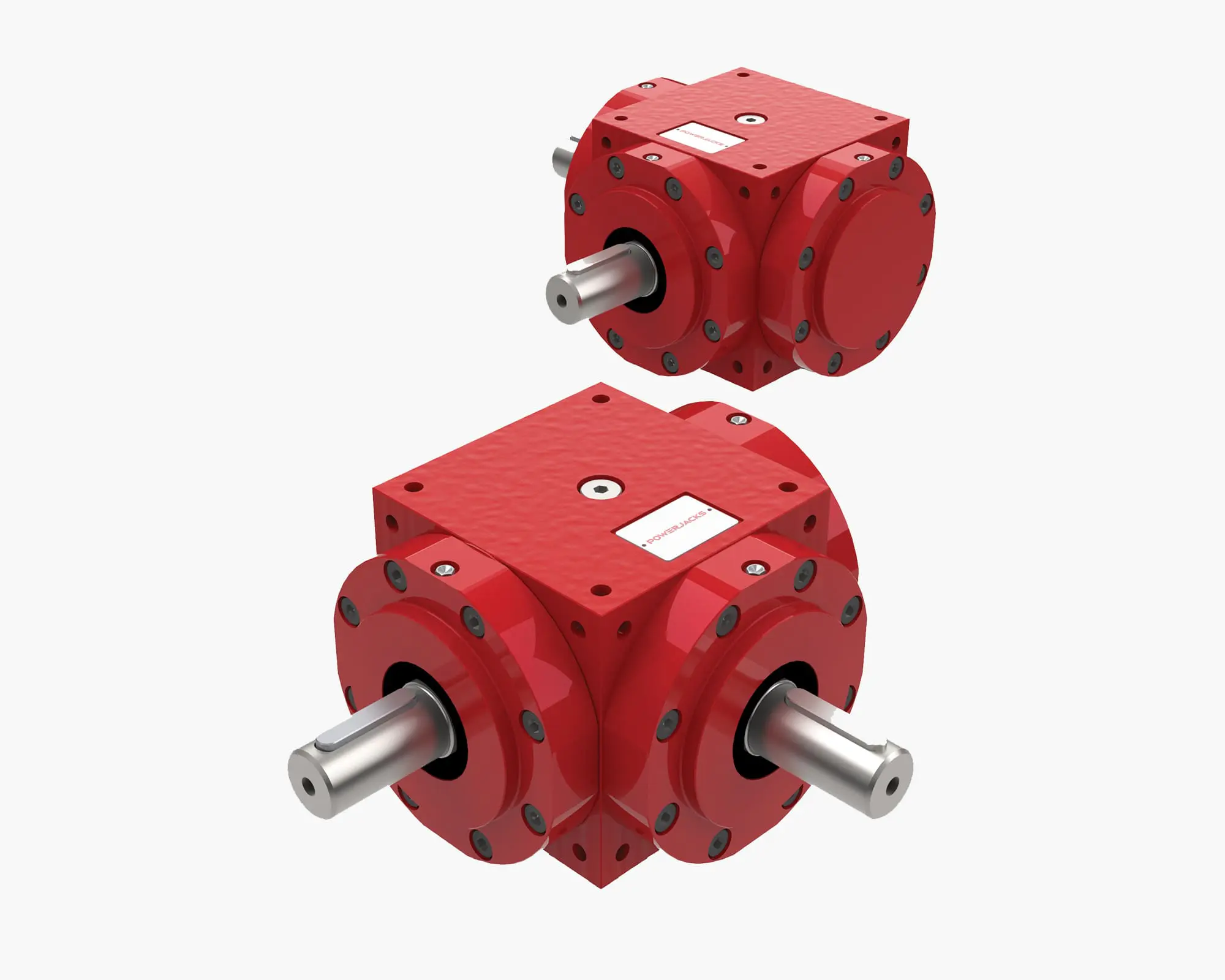

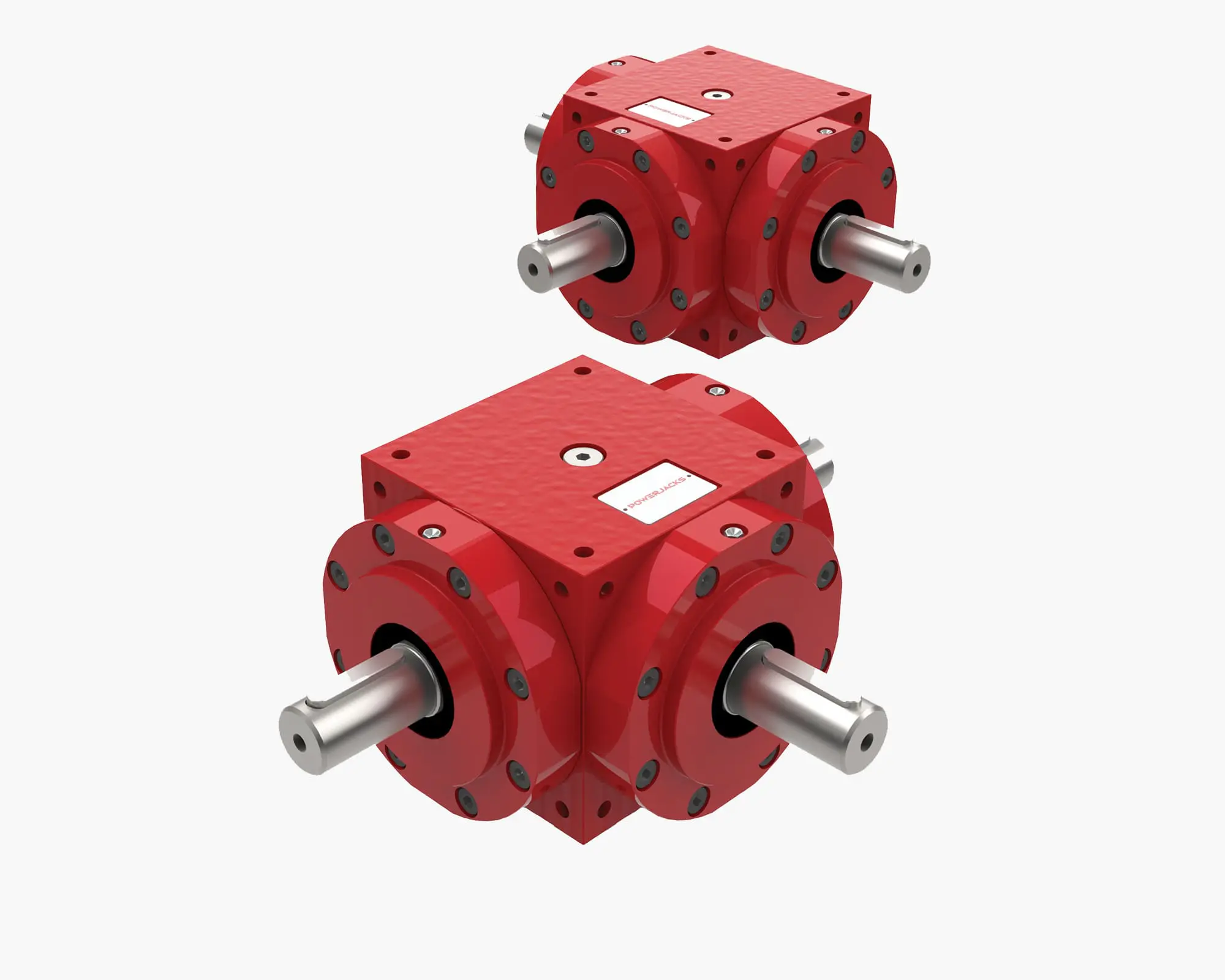

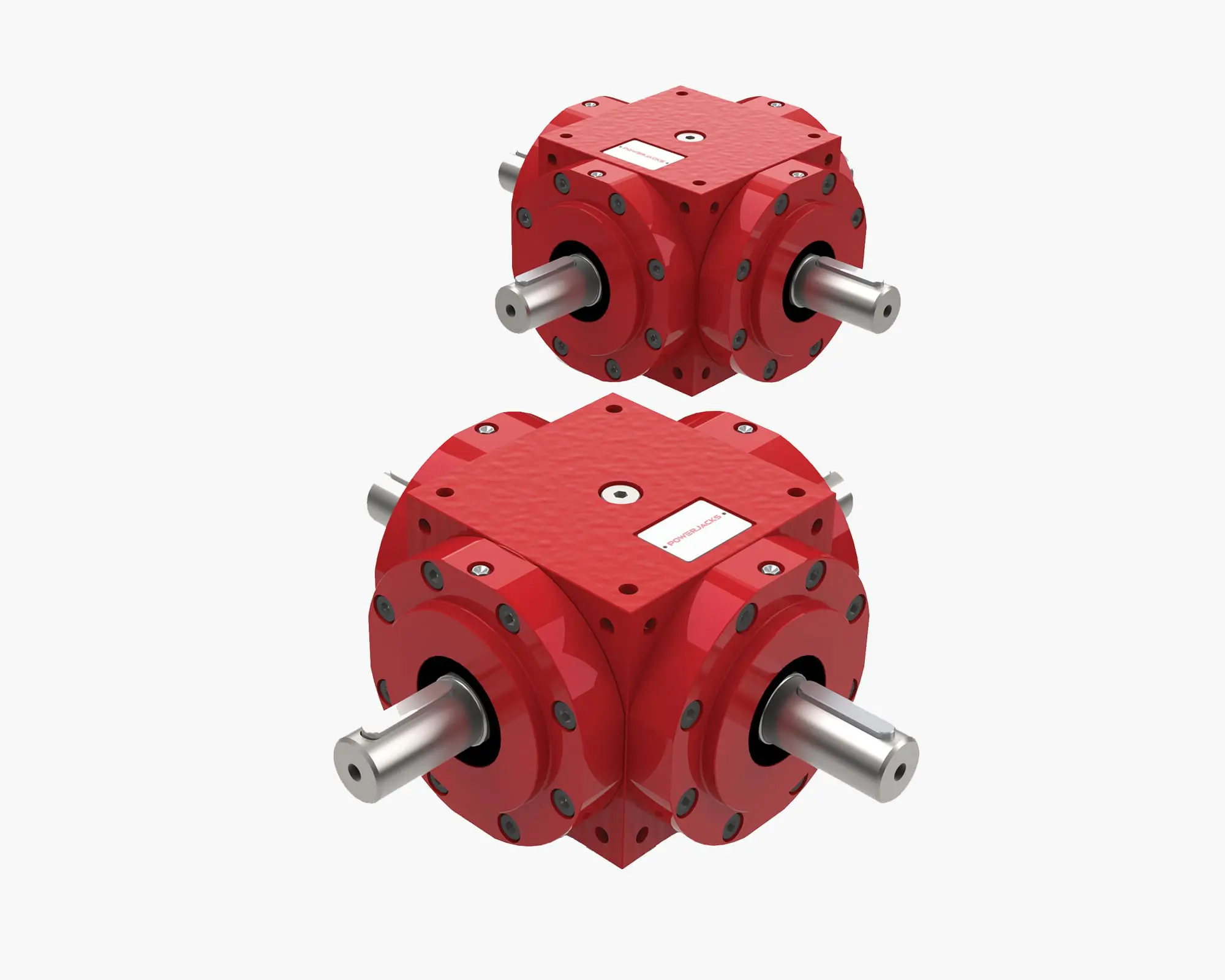

Solid Shaft

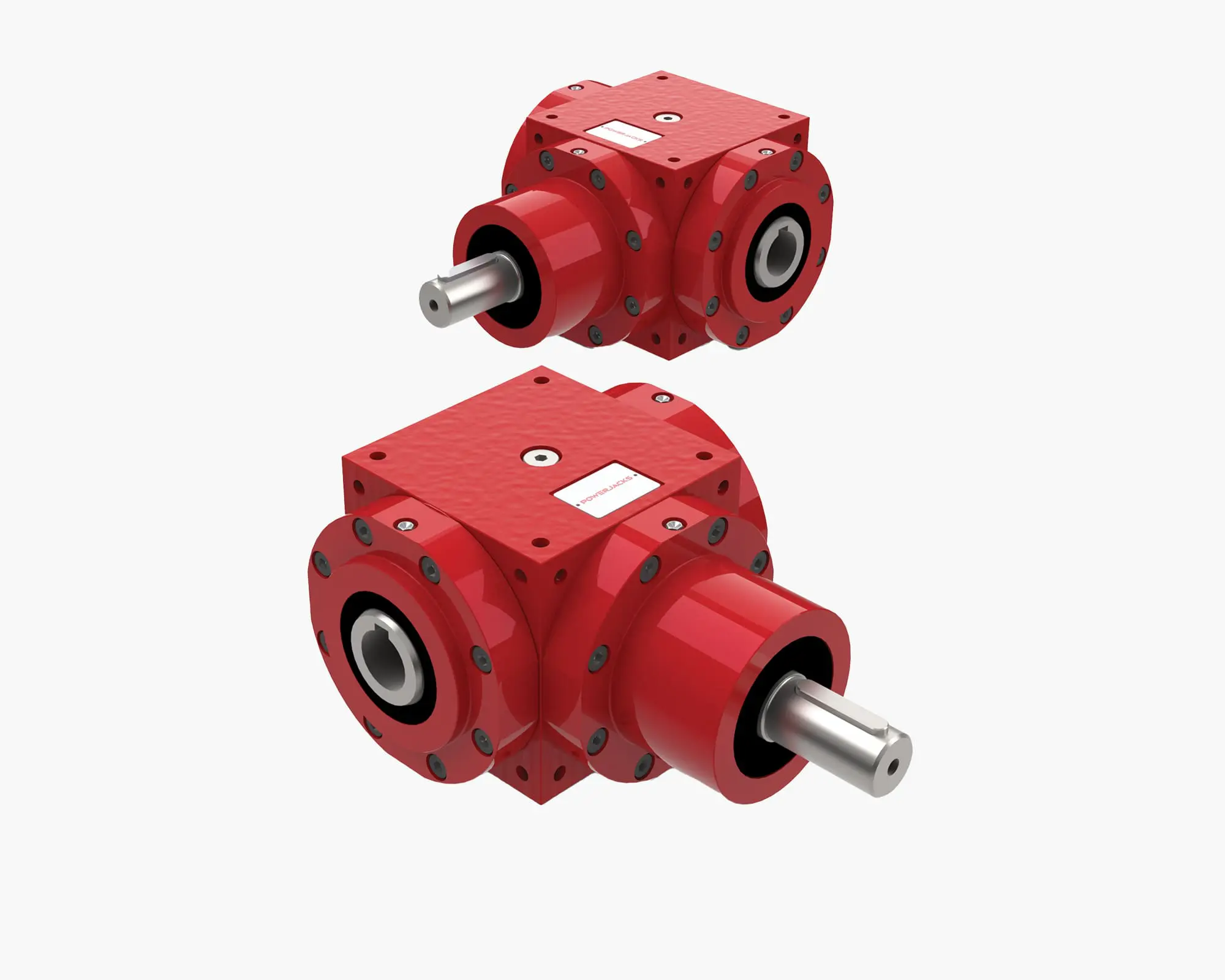

Hollow Shaft
Special Designs
The Range-C gearbox series are designed to support the addition of a number of special features. These specially designed units gives you the benefit of having a gearbox that will easily and neatly interface with your end product saving both time and money. Examples of special designs include special gear ratios, extended input shaft, extended output shaft, stainless steel gearbox, aluminium gearbox, special gearbox housing design, subsea pressure compensated gearbox and many more. The possibilities are only limited by the imagination and the practicalities of manufacture. View some special design examples in applications. To discuss your requirements further please contact your nearest representative.
Preview: Model 38
Switch Preview:
Accessories
Motor Adaptor
Rotary Limit Switch Adaptor
