Range-N
Series 42
3D Interactive Preview, Data Sheets
The N42 bevel gearbox is an ultra compact gearbox for transmitting 7000Nm and is available in 5 sizes with 5 gear ratios.
Employing a central bearing housing support on the 1:1 and 1.5:1 gear ratios, and a small extended bearing housing on the input side of the bevel gearboxes with ratios 2:1 and above. It is a high torque rated unit with good thermal characteristics. It is available in solid shaft and hollow output shaft configurations with the optional motor mounting flange, for easy direct coupling of a standard electric motor.
Useful Information
Key Features
- Compact Cubic Bevel Gearbox Design

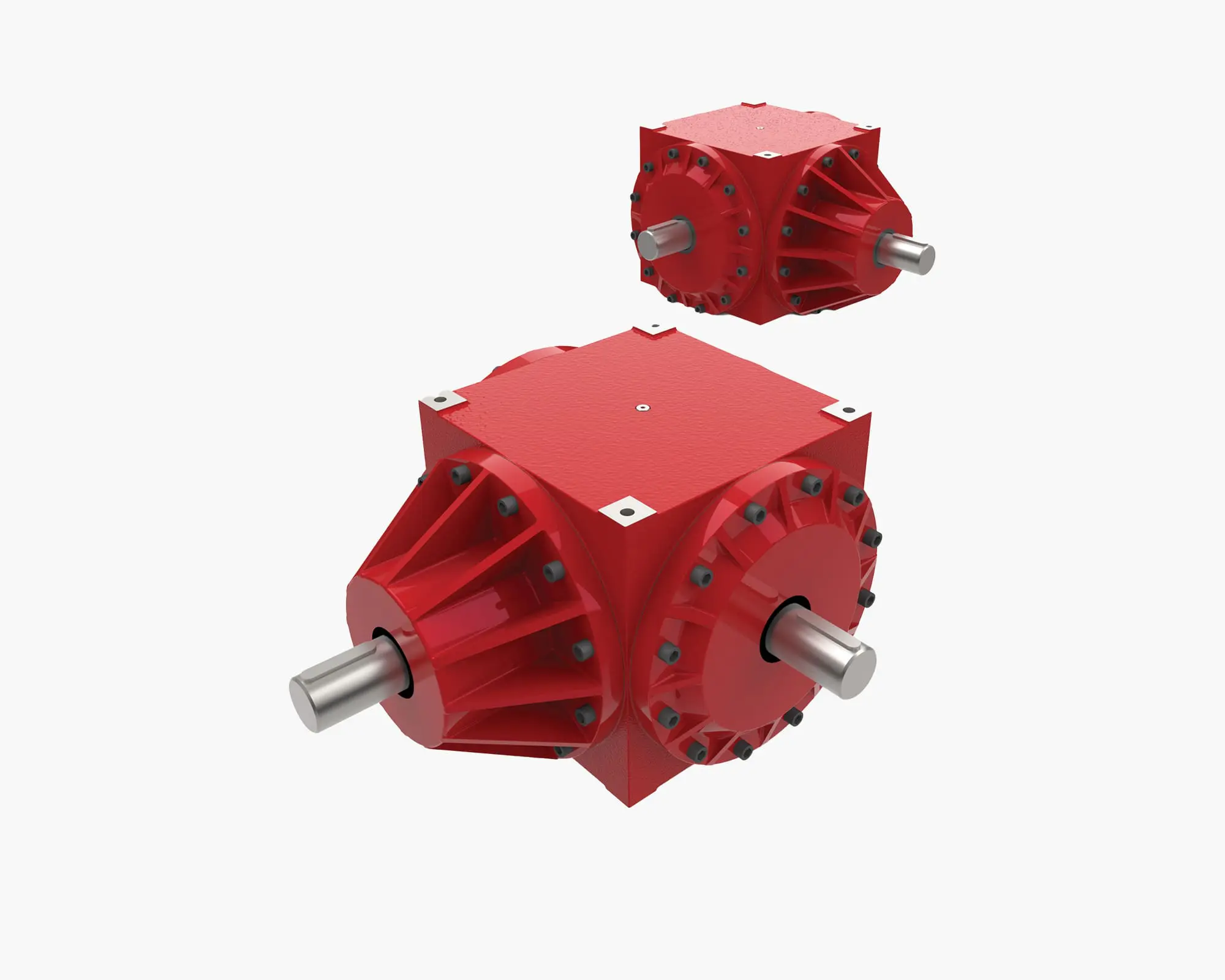

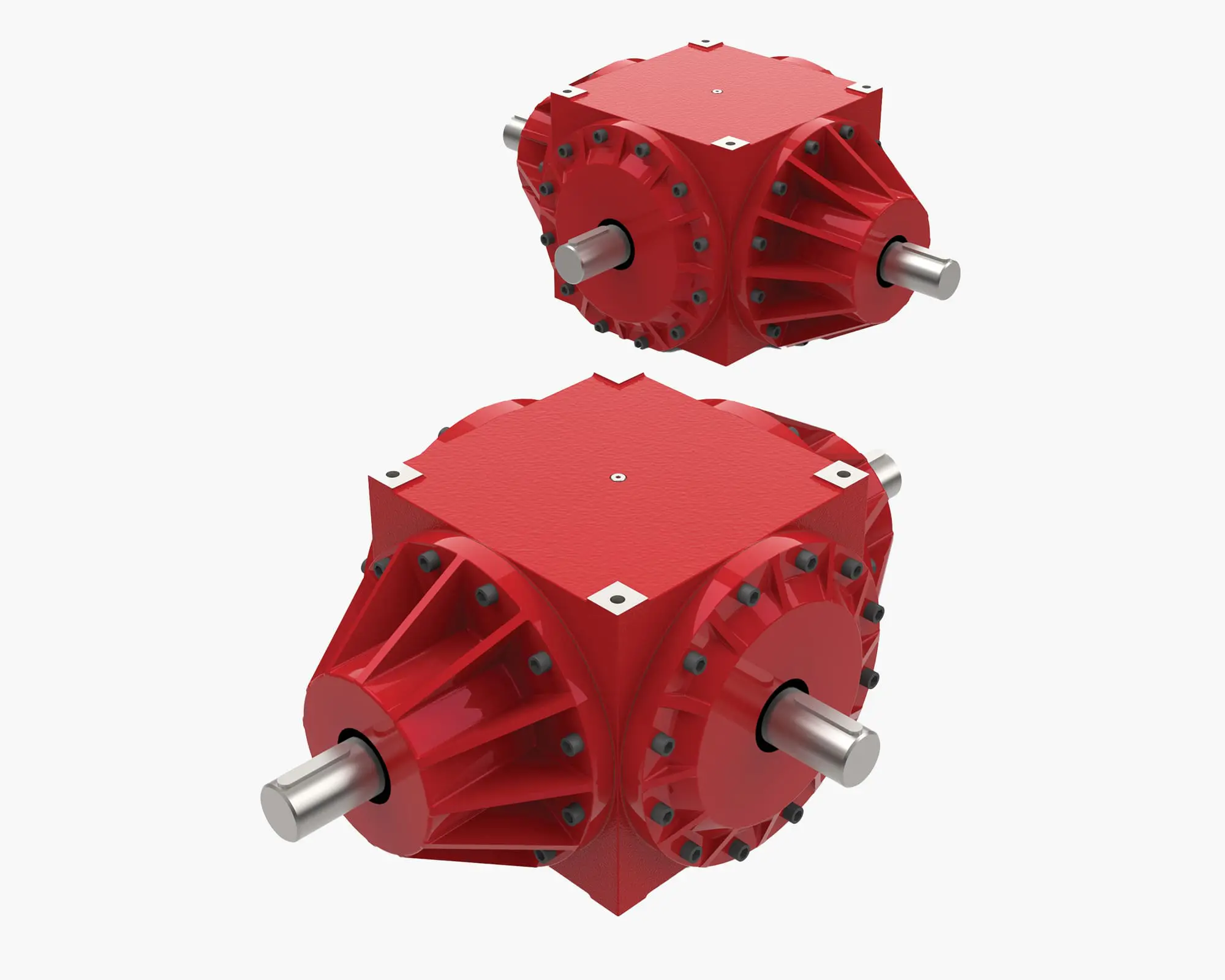

- 2-way, 3-way & 4-way Configurations
- Solid Shaft & Hollow Shaft
- Gear Ratios: 1:1, 1.5:1, 2:1, 3:1 & 4:1
- Torque Ratings up to 7000 Nm
- Robust SG Iron Housing as Standard
- Integrated Motor Adapter Option
- External mounting feet or flange Optional
- Special Custom Designs including Submersible Available
- Special Gear Ratios Available
Typical Applications
These ultra compact bevel gearboxes are designed for the transmission of rotary mechanical power through ninety degrees or split power from one input drive to two or three output drives. They use precision cut spiral bevel gears to deliver a smooth and quiet transmission with an efficiency of up to 98%. While the standard design is suitable for most applications our engineering team can customise units to meet the most arduous of conditions whether inside, outside, on land or subsea.
Selecting the Right Gearbox
When selecting a gearbox there are a number of factors which influence the final size of the selected unit. You can view this information in the Bevel Gearbox Selection Guide. The selection procedure is a 12 step process that uses the following application information to select a bevel gearbox.
- Bevel Gearbox Input Speed (rpm)
- Bevel Gearbox Output Speed (rpm)
- Bevel Gearbox configuration
- Required Output Torque (Nm)
- Operating Hours per day
- Input Power Source Bevel Gearbox application
- Number of starts per hour
- Transmission methods
- Duty cycle per hour (% running time)
- Operating ambient temperature
Configurations

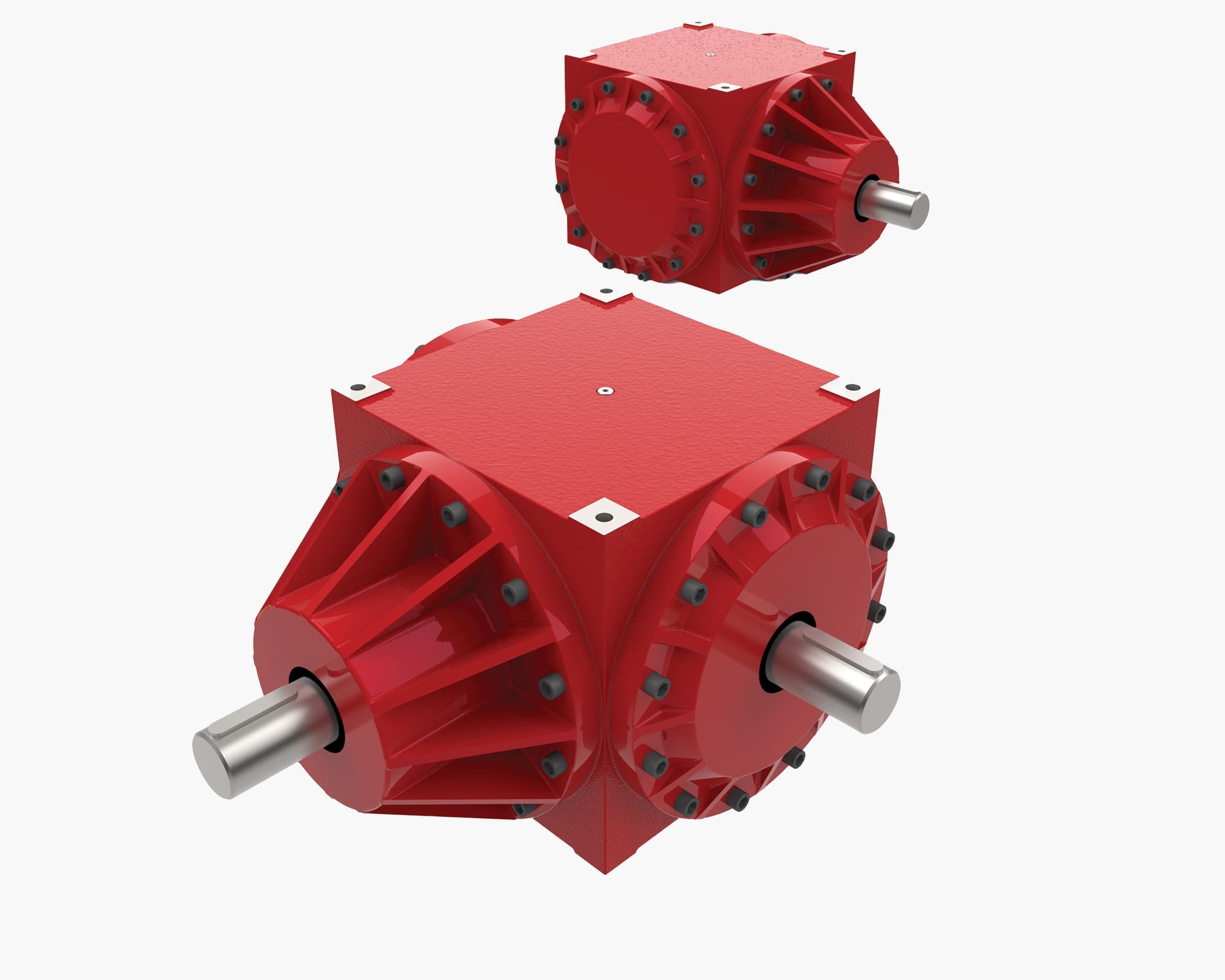

Solid Shaft

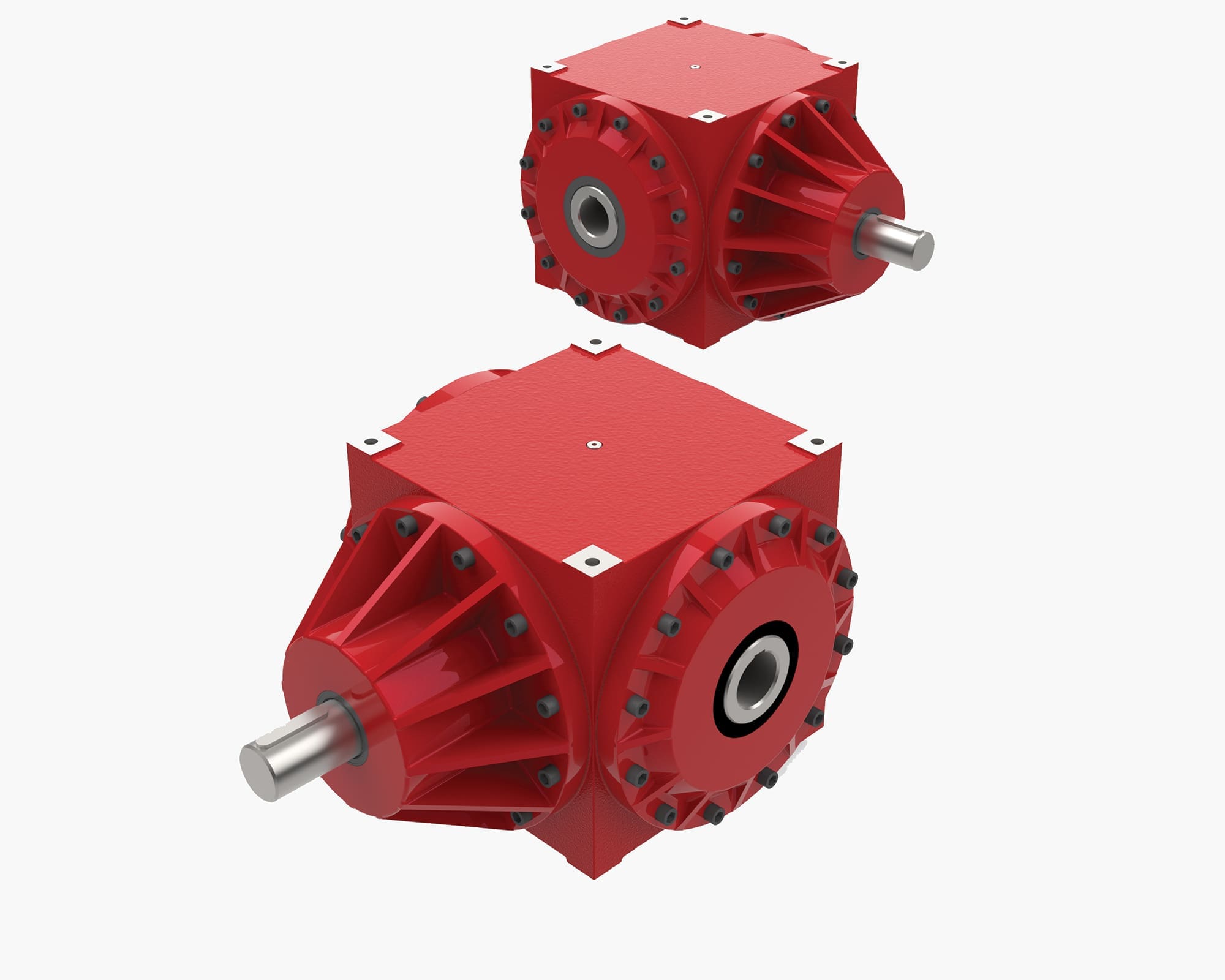

Hollow Shaft
Special Designs
The Range-N gearbox series are designed to support the addition of a number of special features. These specially designed units gives you the benefit of having a gearbox that will easily and neatly interface with your end product saving both time and money. Examples of special designs include special gear ratios, extended input shaft, extended output shaft, stainless steel gearbox, aluminium gearbox, special gearbox housing design, subsea pressure compensated gearbox and many more. The possibilities are only limited by the imagination and the practicalities of manufacture. View some special design examples in applications. To discuss your requirements further please contact your nearest representative.
Preview: Model 42
Switch Preview:
Technical Data Sheets & CAD
| Capacity | Product | Data Sheet |
|---|---|---|
| Series 42, 1:1 & 1.5:1, 2 Way Solid Shaft | Series 42, 1:1 & 1.5:1, 2 Way Solid Shaft |
PDF |
| Series 42, 1:1 & 1.5:1, 3 Way Solid Shaft | Series 42, 1:1 & 1.5:1, 3 Way Solid Shaft |
PDF |
| Series 42, 1:1 & 1.5:1, 4 Way Solid Shaft | Series 42, 1:1 & 1.5:1, 4 Way Solid Shaft |
PDF |
| Series 42, All, 2 Way Hollow Shaft | Series 42, All, 2 Way Hollow Shaft |
PDF |
| Series 42, All, 3 Way Hollow Shaft | Series 42, All, 3 Way Hollow Shaft |
PDF |
| Series 42, All, 4 Way Hollow Shaft | Series 42, All, 4 Way Hollow Shaft |
PDF |
Accessories
Motor Adaptor
Rotary Limit Switch Adaptor
