Electric Motors
3-phase Electric Motors
Power Jacks can supply electric motors for all applications whether AC or DC motors are required.
The most popular motors used are 3-Phase AC Induction Motors, however we also supply 1-Phase AC Induction Motors, Servo Motors and DC Permanent Magnet Motors. All of the motors can be supplied with brakes; they are spring applied electrically released units, which provide the fail safe operating characteristics such that on interruption, or failure of power supply, brake will engage and arrest the load.
Useful Information
3-Phase AC Motor Features
- 3 Phase, 50 Hz/60Hz
- 220-240/380-415V up to 3kW
- 380-415/660-720V 4 kW & above

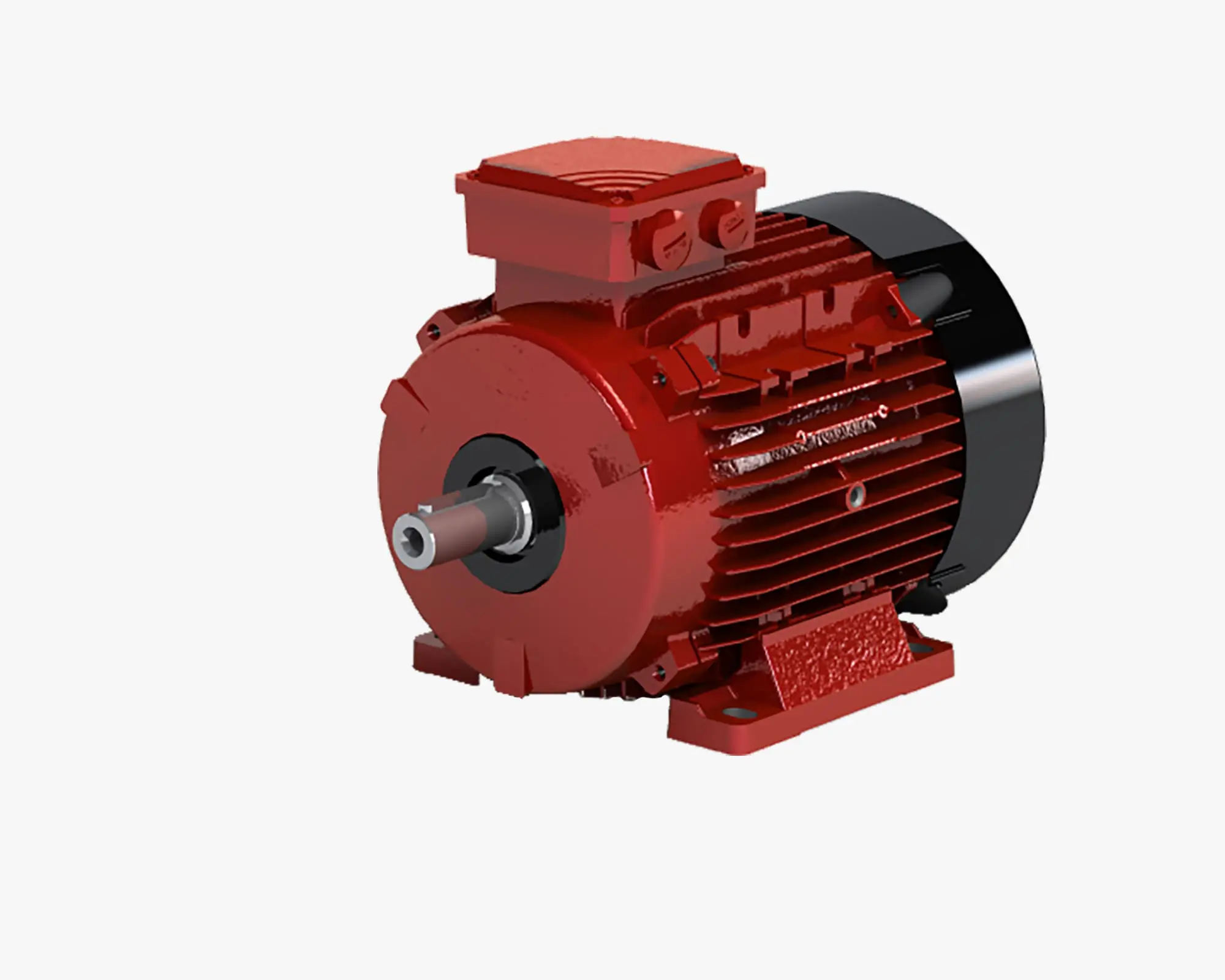

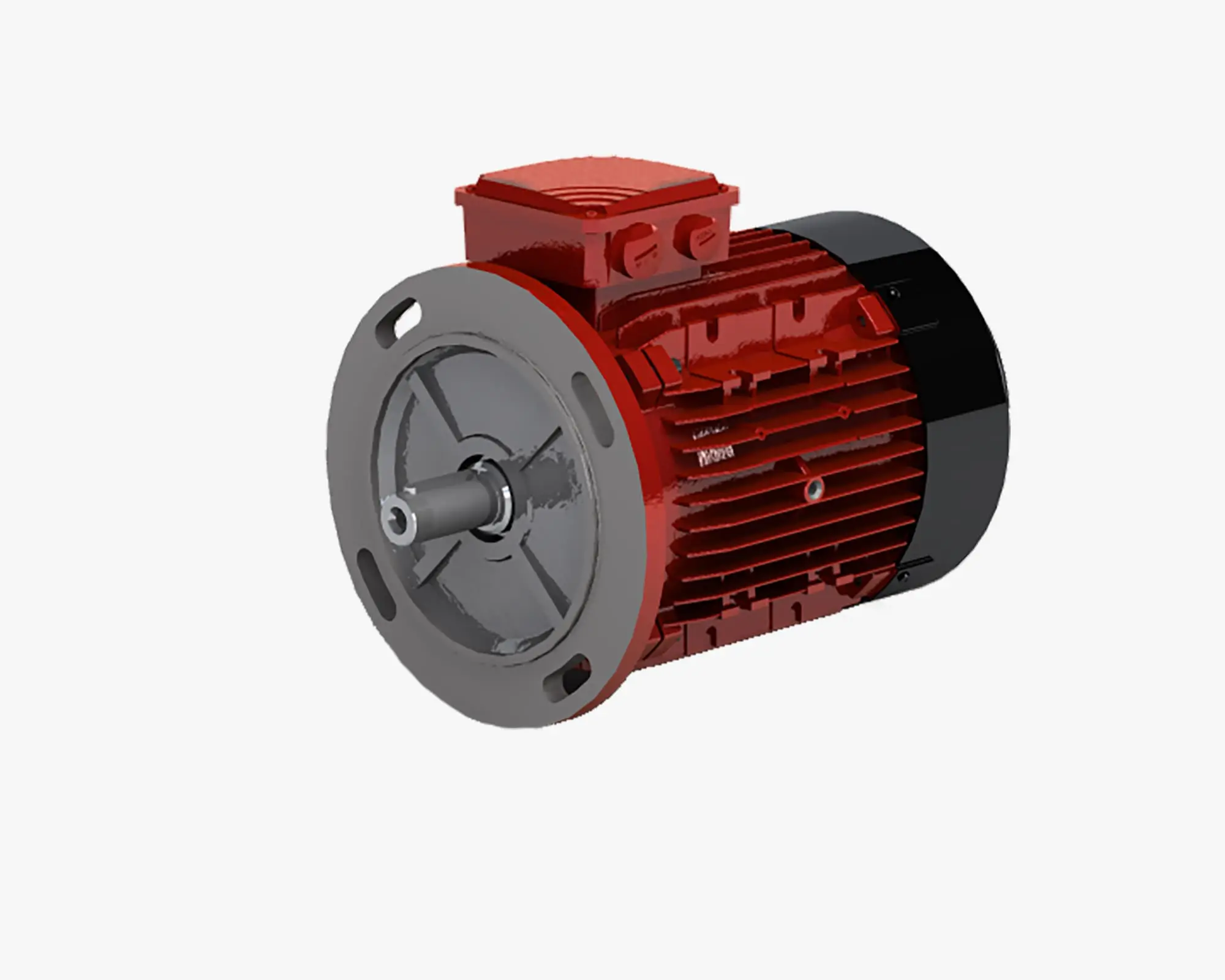

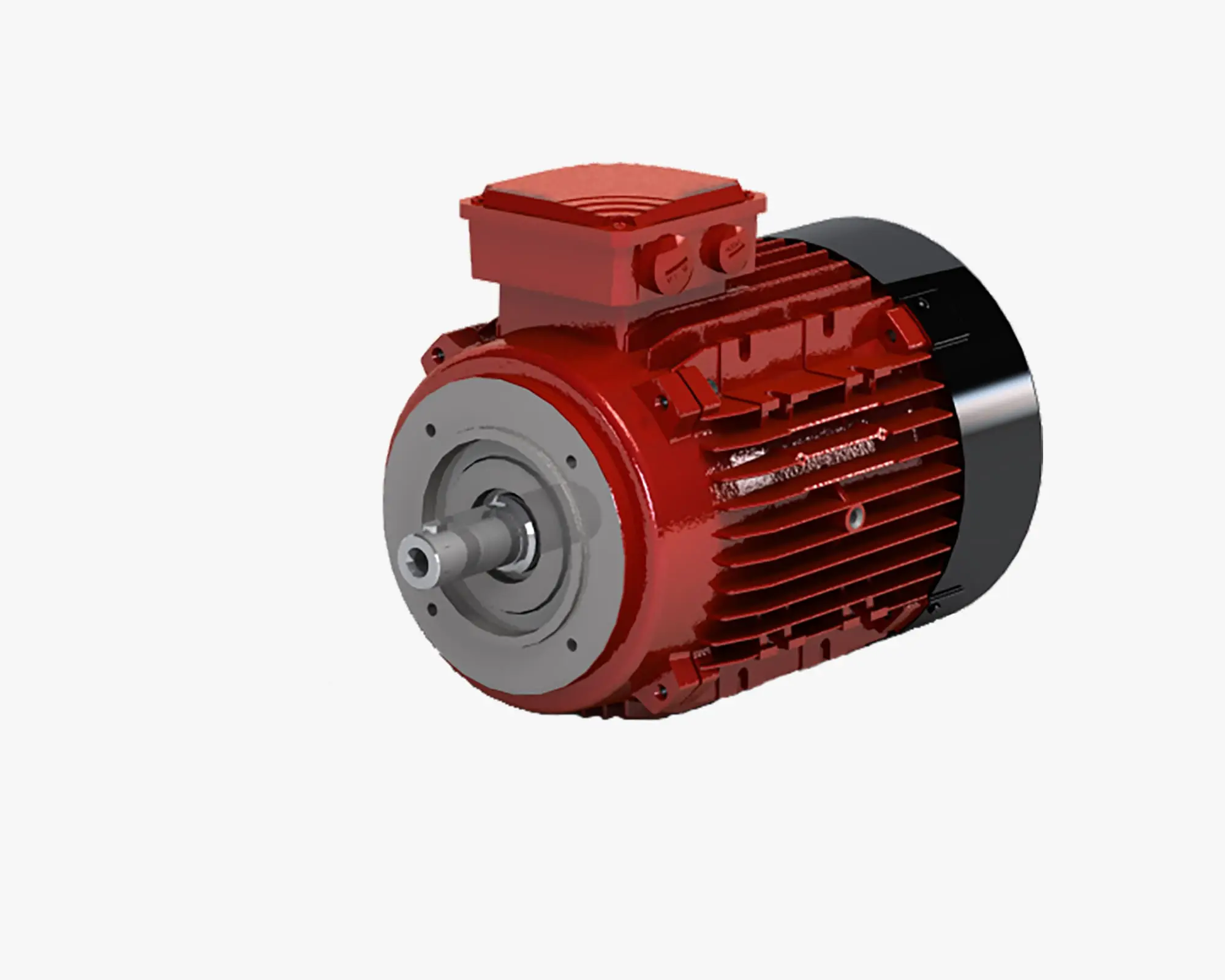

- B3 Foot, B5 Flange and B14 Face Mounting
- 4 Pole (1500 rpm) and 6 Pole (1000rpm)
- IEC Frame Sizes 63 up to 200
- Aluminium construction
- Fan ventilated (TEFC)
- Enclosure IP55
Benefits
- High efficiency — low running costs
- Low noise levels
- High power factors
- High torque with smooth acceleration and low current
- Multi-mount versatility for mounting arrangement and terminal box position
- Aluminium construction for light weight and corrosion resistance
- Four position cable entry
Other Motors and Options
- 2 and 8 Pole 3 phase AC motors
- Single phase AC motors
- Servo motors
- DC permanent magnet motors
- Cast Iron or Steel construction motors
- Integral encoder (Absolute or Incremental)
- Forced ventilation unit (FVU)
- TENV cooling
- Enclosures IP56 up to IP68
- Plug-In Connections (e.g. Harting)
- Tropicalised motors
- High altitude and high temperature options
- NEMA and Japanese standard units
- Integral AC inverter
- Marine motors
- Hazardous area motors
- ATEX rated motors
