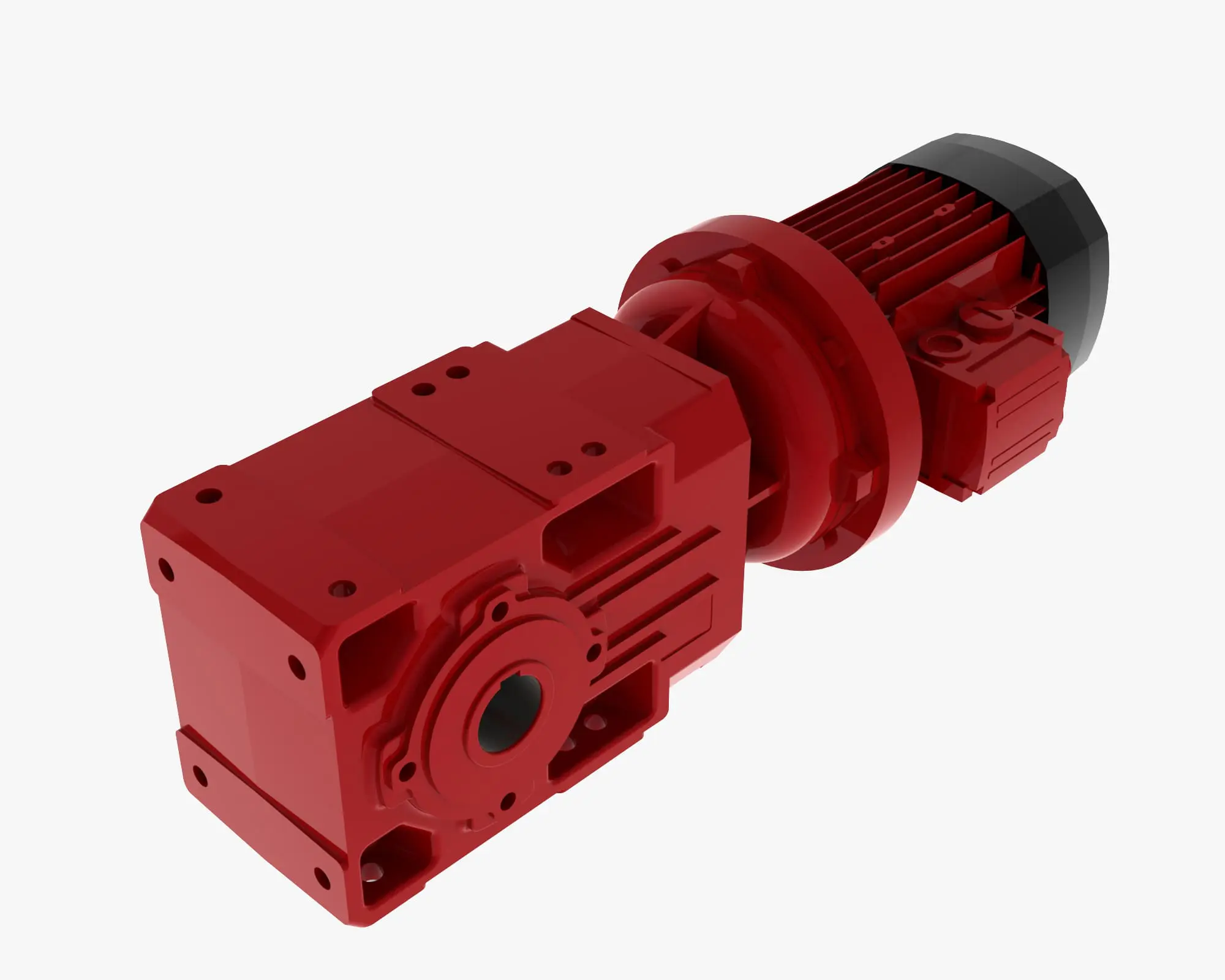

Helical Bevel Gearbox
Helical bevel reduction gearboxes are used for transmitting mechanical power through ninety degrees.
Used in screw jack systems either with a hollow or solid output shaft. Ideal as the main drive for H, U and T configuration jacking systems. Also used fitted directly to screw jacks as a primary drive.
Up to 14000Nm torque transmission with gear ratios up to 1715:1.
Useful Information
Gearbox Features
Torque Range
– 100 Nm to 14000 Nm
Power Rating
– 0.22 kW to 150 kW (at 1400 rpm input)
Gear Ratios
– 5.4:1 to 1715:1
Output
– Foot and shaft mount – two bore options size
– Keyless shrink disc fitting
– Metric or Inch series solid output shaft
– Taper bushing
– Splined Hollow shaft to DIN 5480
Input
– IEC and NEMA motor adaptors
– Servo motor adapters
– Metric or inch series solid input shaft
Gearbox Options
Main gear options
– Backstop
– Reinforced bearings for higher overhung load capacity
– Reduced backlash
– Taconite seals
AC Motors
– Integral motors and brake motors
– IEC motors and brake motors
– Single and dual speed motors
Main brake features
– DC and AC supply
– Fast brake engage/disengage through electronically controlled AC/DC rectifiers.
Main motor options
– Thermistors and thermostat sensors
– Separate supply forced ventilation
– Line driver and push-pull incremental encoder
Selecting the Right Reduction Gearbox
There are 3 factors to consider when selecting the correct reduction gearbox.
- Select a gearbox type to the closest required power (Pd)
- Find the closest matching output speed hence gear ratio for that gearbox type
- Check that the gearbox power rating is suitable for the actual output speed
Download the Reduction Gearbox selection guide for more information.
